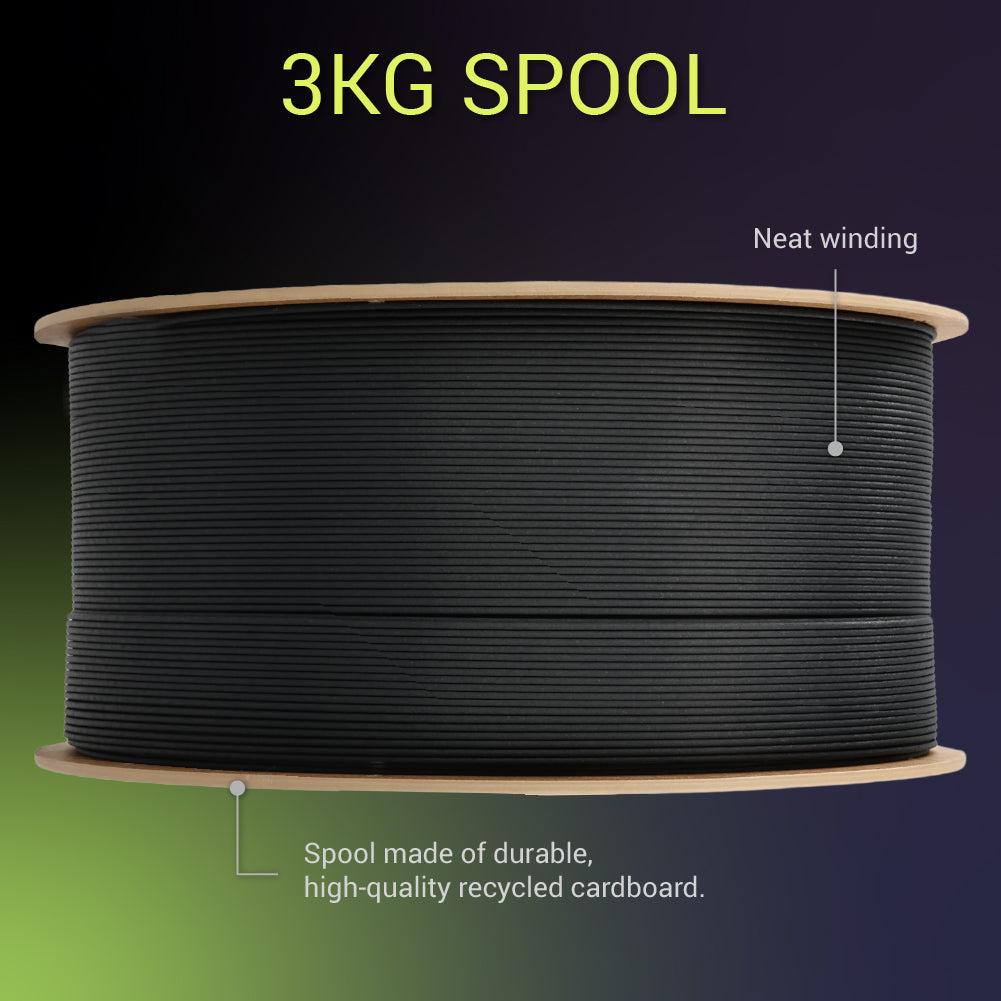

Fiberon™ PPS-CF10

Printing Temperature: 310˚C - 350˚C
Build Plate Temperature: 80˚C - 90˚C
Chamber Temperature: Room Temperature
Printing Speed: up to 300mm/s
Cooling Fan: OFF

Direct Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Indirect Drive:
Retraction Distance: 6mm
Retraction Speed: 60mm/s

Recommended Drying Settings:
Regular Oven: 100˚C for 10h
PolyDryer: Level 3 for 18h (PolyDryer™)
(Only if the material has absorbed moisture)

Annealing Settings: 125˚C for 16h

Printer Profiles

Can't find your profile? Join our Discord and see if the community has made one already!

Do I need a hotend that can reach above 300˚C?

Yes -we definitely recommend printing with a hotend that can reach at least 310˚C. It might be possible to print at 300˚C, but you will need to print very slowly and you run the risk of having reduced layer adhesion.

What is annealing?

You can find out more about annealing HERE

Will the spools work in an AMS?

While the spools will roll fine in the AMS, PPS-CF is very brittle on the spool meaning that if it goes through too tight of twists or turns - it may snap. We recommend not using an AMS and having a direct path to the printer.

Can you offer 1KG Fiberon™ Spool Options?

Unfortunately we are not offering 1KG Fiberon™ options and this has to do with the increased chance of carbon fiber and glass fiber filament snapping on the spool.

Since carbon fiber and glass fiber filament is more brittle, we spool these with a larger core. This larger core means that 1KG of filament will not fit on a 1KG spool.
