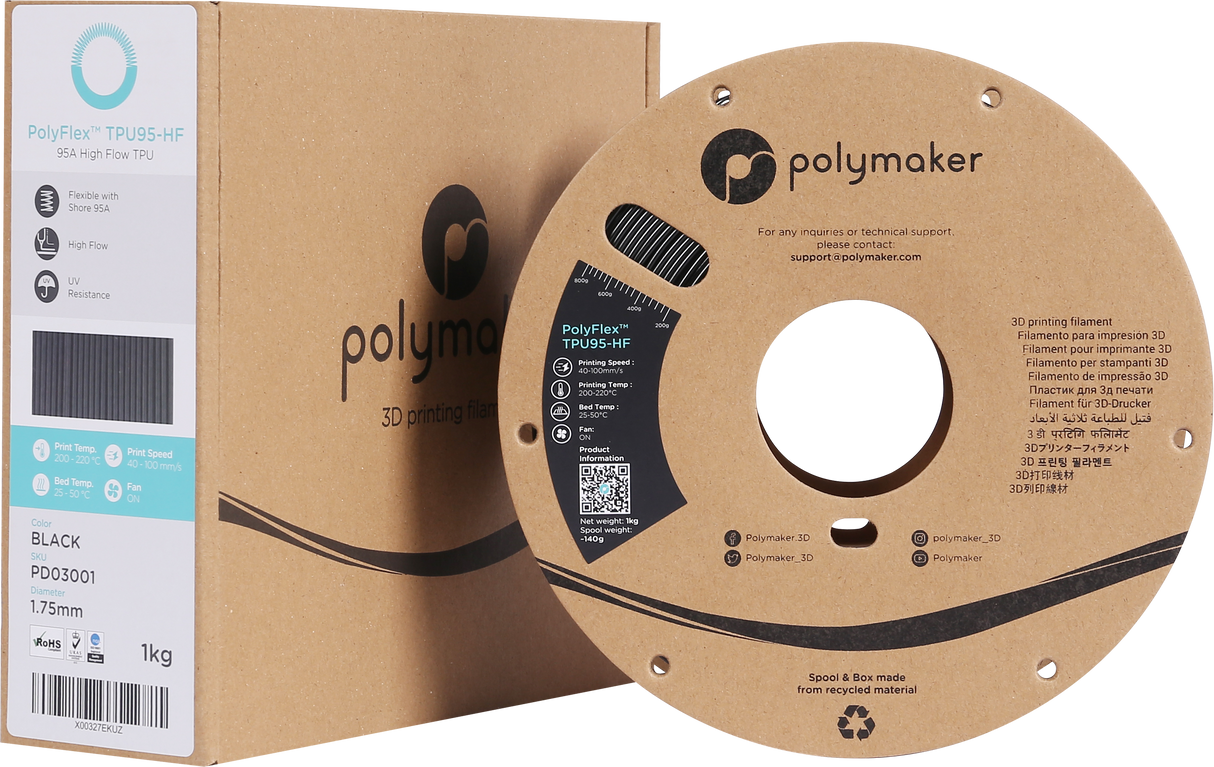

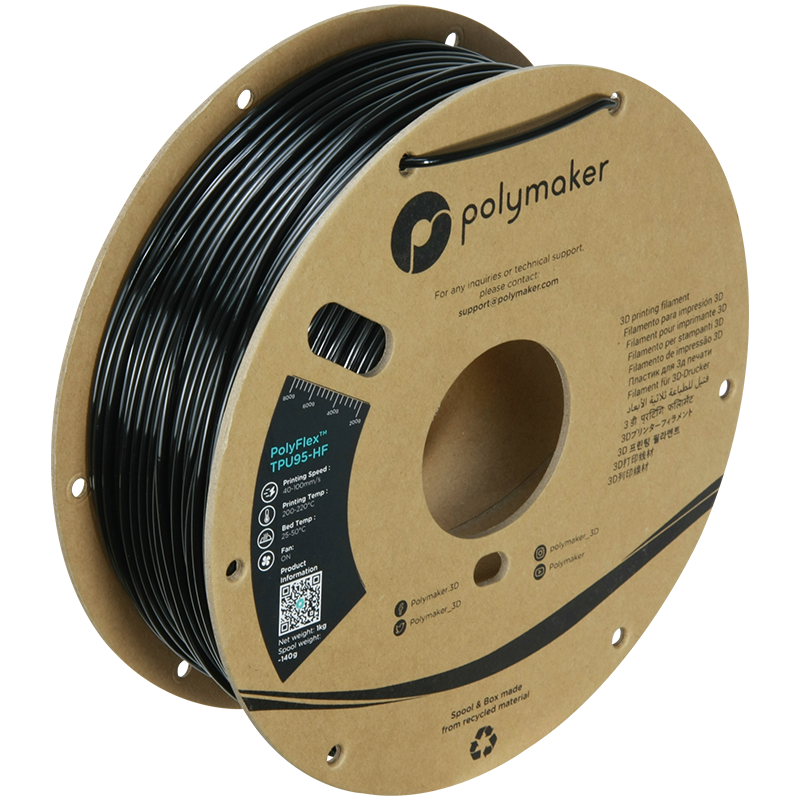

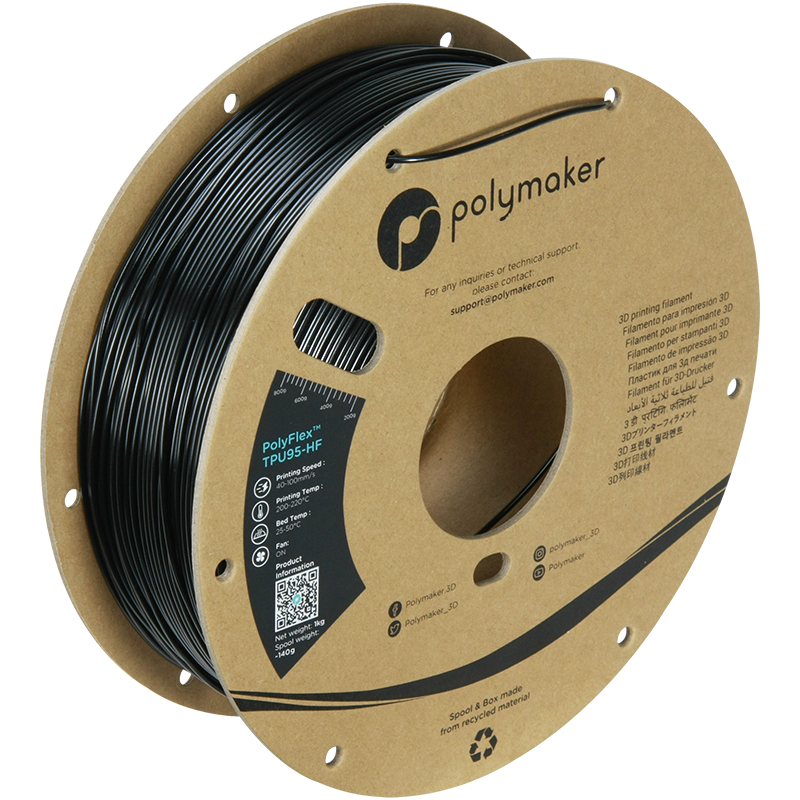

PolyFlex™ TPU95-HF

PolymakerSKU: PD03001

Diameter: 1.75mm
Net Weight: 1kg

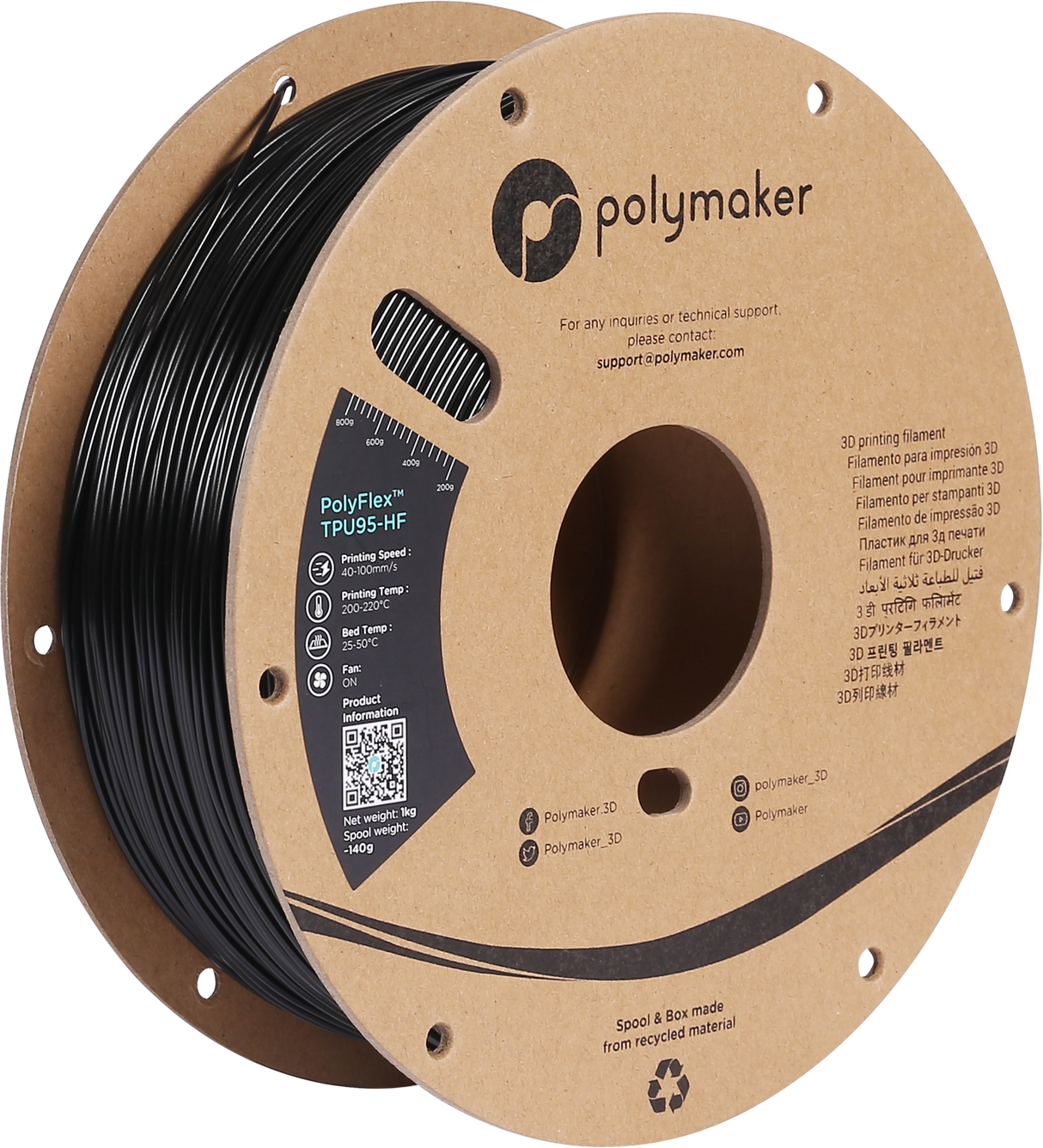

Color: Black (HEX Code - ⌗101820)
Price:
Sale price$63.99 CAD

Shipping calculated at checkout

Stock:
In stock (58 units), ready to be shipped

Description

PolyFlex™ TPU95-HF, created from Covestro’s Addigy®️ family, is a TPU with high flow properties making it ideal for high speed printing. PolyFlex™ TPU95-HF unlocks new applications for flexible materials in manufacturing.

PolyFlex™ TPU95-HF can be printed on an indirect drive printer however we highly recommend to use a direct drive printer to print PolyFlex™ TPU95-HF at its high speed settings. A direct drive printer is a printer with the extruder mounted on top of the hot end.

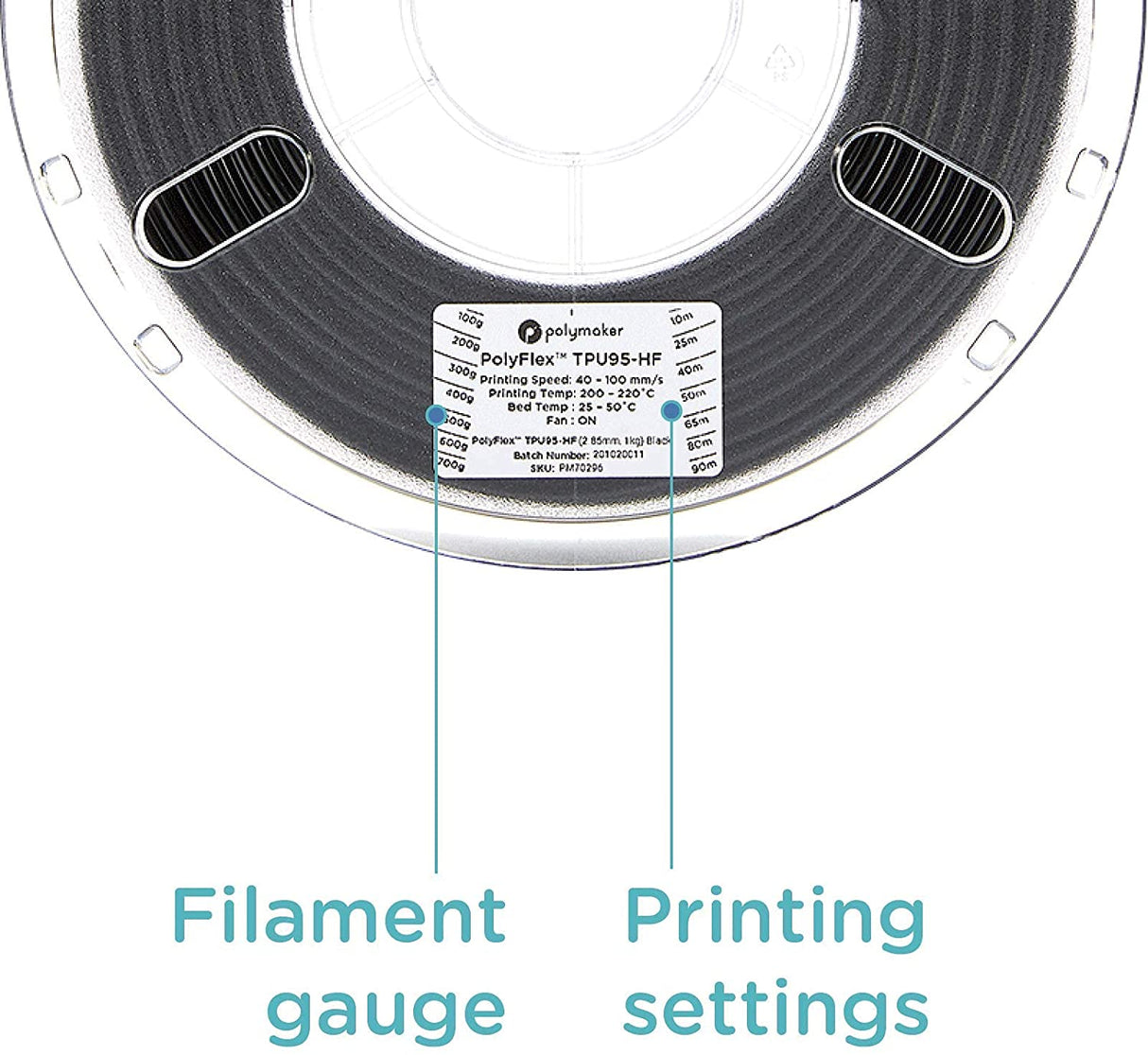

Printing Temperature: 200˚C - 220˚C
Bed Temperature: 25˚C - 50˚C
Printing Speed: 40mm/s - 100mm/s
Fan: ON

Direct Drive:
Retraction Distance: 3mm
Retraction Speed: 40mm/s
Indirect Drive:
Retraction Distance: 6mm
Retraction Speed: 60mm/s

Drying Settings: 70˚C for 8h
(Only if the material has absorbed moisture)

PolyFlex™ TPU95-HF is a high flow TPU, which means with the right setup (direct drive printer), it can be printed at 100mm/s+.

0.5kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 190±7g

0.75kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 50.6±2mm
Spool Weight: 125±7g

1kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 200±1mm
Spool Width: 65.6±2mm
Spool Weight: 140±7g

2kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 370±18.5g

3kg cardboard spool:
Spool Inner Hole Diameter: 55±1mm
Spool Diameter: 250±1mm
Spool Width: 117.2±2mm
Spool Weight: 425±21.3g

5kg plastic spool: 32mm/300mm/160mm/819g
Spool Inner Hole Diameter: 32±1mm
Spool Diameter: 300±1mm
Spool Width: 160±1mm
Spool Weight: 819±30g
Spool Material: PP
